100km Anti-jamming IP Mesh Network Radio HD Video Wireless Transmitter Receiver

  • 1
  • 2

Brand Name : Hincn

Model Number : HCL602- 5

Place of Origin : China

MOQ : 1 set

Price : US$1,998~$2,298

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 789pcs/month

Delivery Time : 7~14 working days

Packaging Details : Canned and packaged in cardboard boxes

Frequency : 566~678MHz or 1420~1530MHz

RF Power : 5W

Bandwidth : 1.4/ 3/ 5/ 10/ 20/ 40MHz

Encryption : AES128

Power consumption : less than 1.5A at 24V

Power input : 24~30V

Contact Now

100km Anti-jamming IP Mesh Network Radio HD Video Wireless Transmitter Receiver


Technical Specifications
Model number HCL602-5
Modulation TDD OFDM
Frequency 566~678MHz and 1420~1530MHz
Bandwidths 1.4/3/5/10/20/40MHz
Throughput Maximum 60Mbps
RF transmission Power 5W
Constellation QPSK, 16QAM, 64QAM, self-adaption
Sensitivity -102dBm (1Mbps at 20MHz)
IP data transmission (3 Ethernet port) Support
Serial data transmission (1 channel RS232 or TTL) Support
Transmission range 1~7km (ground to ground), maximum 100km (UAV to ground)
Management Through Web UI or Control UART
Encryption AES128-bit encryption
Network mode Mesh
Movement speed Support maximum 300km/h
Power input 24~30V
Power consumption <1.5A at 24V
Dimensions 118.4*61.4*29 mm
Weight 235g
Technology
TDD (Time Division Duplex) allows the radio device to use the exact same frequency for both sending (Transmitting/Tx) and receiving (Receiving/Rx), but it separates them in time.
OFDM (Orthogonal Frequency Division Multiplexing) takes a high-speed data stream and splits it into many slower, parallel streams. Each of these slower streams is then transmitted on a separate, closely spaced radio frequency called a subcarrier.
TDD OFDM is a highly flexible and efficient combination of technologies that is central to modern high-speed data networks like 5G.
Key Features
  • TDD OFDM full duplex wireless transceiver suitable for UAV/ UAS video data Link
  • Up to 60Mbps Iperf Throughput
  • Supports Mesh Networks
  • Control by web browser or control UART
  • 3 Ethernet and 1 channel RS232/TTL for data link
  • Long distance wireless video data transmission with 5W RF power
Overview

Hincn HCL602-5 IP Mesh Network Radio was designed for video data wireless transmission with two- way wireless data link. It works at 600MHz or 1.4GHz bands, with frequency hopping technology (FHSS) to ensure stable signal communication.

100km Anti-jamming IP Mesh Network Radio HD Video Wireless Transmitter Receiver

100km Anti-jamming IP Mesh Network Radio HD Video Wireless Transmitter Receiver
Input/Output Connections
Connection Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART (RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector

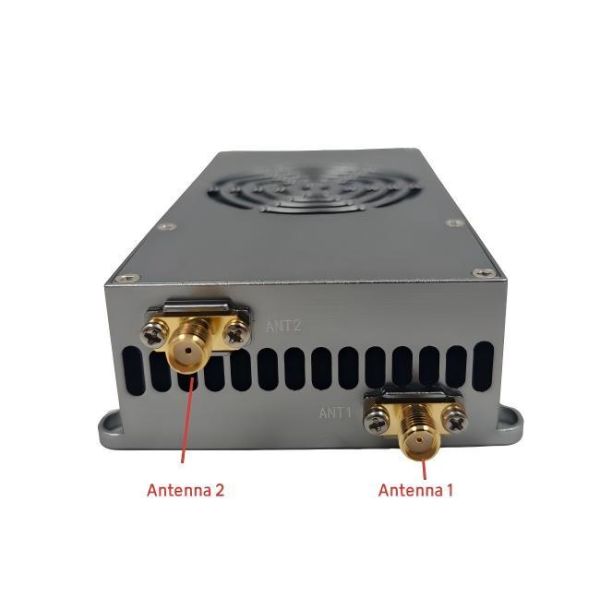

ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female

Wireless Networking Capabilities

This HCL602 5W IP Mesh Network Radio supports mesh network with maximum 4 nodes and shared maximum 60Mbps Iperf Throughput.

Remark: we have higher version that supports up to 32 nodes. If you need it, please contact us.

  • Mesh network capacity: supports a maximum of 4 Nodes (2≤N≤4)
  • Transport: unicast, multicast, and broadcast are supported
  • Time synchronization: self-synchronization without external clock
  • Power control: adaptive transmission power adjustment
  • Topology: supports multi-hop routing with maximum 4 nodes and 2 hop routing
  • Routing: automatic routing adjustment with fixed route configuration option
  • Data rate level: adaptive average distribution system rate

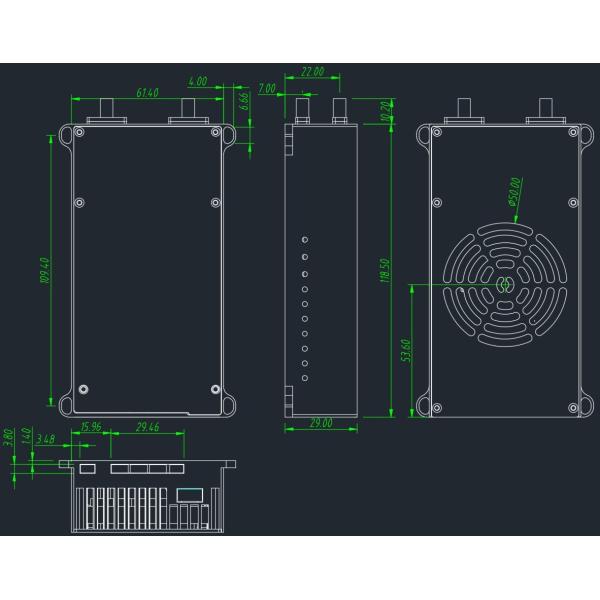

Product Diagram
100km Anti-jamming IP Mesh Network Radio HD Video Wireless Transmitter Receiver
Frequently Asked Questions
Q: Does this UAV video transmitter support any other cameras except IP camera?
A: IP camera video can be connected with HCL602 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with HCL602 via Ethernet connection.
